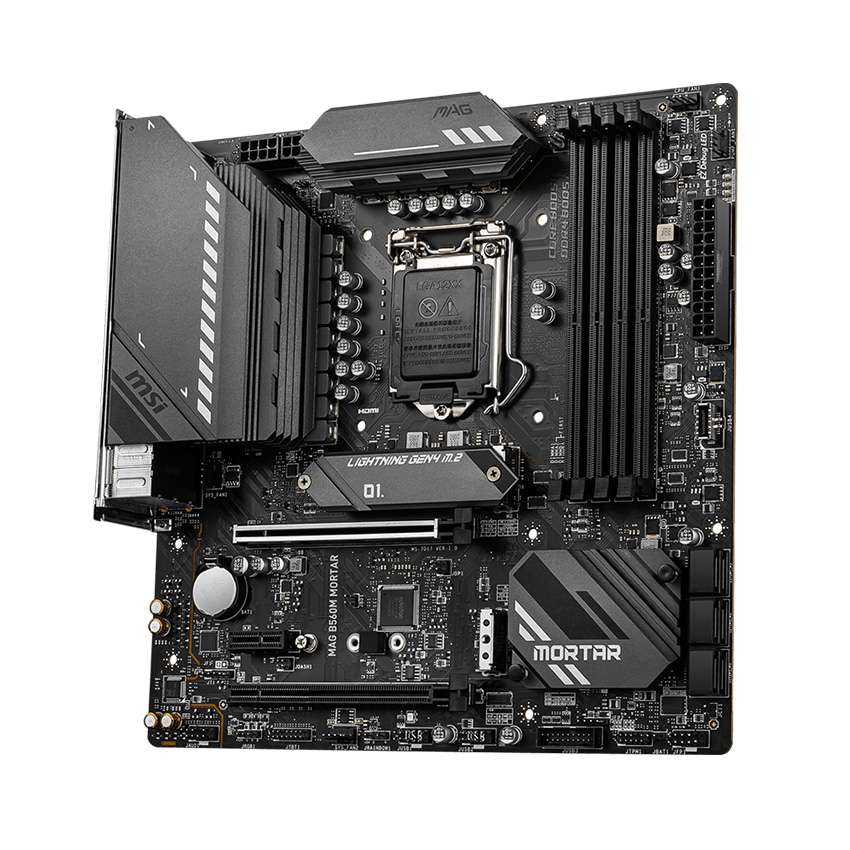

Mainboard MSI MAG B560M MOTAR

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

MAG B560M MORTAR

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

2x PCIe x16 slots
Support x16/ x4
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (From B560 chipset)
Support up to PCIe 3.0
1x PCIe 3.0 x1 slot
PCI_E2 (From B560 chipset)

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (from B560 chipset)
2x M.2 slots (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B560 chipset)
Supports up to PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices

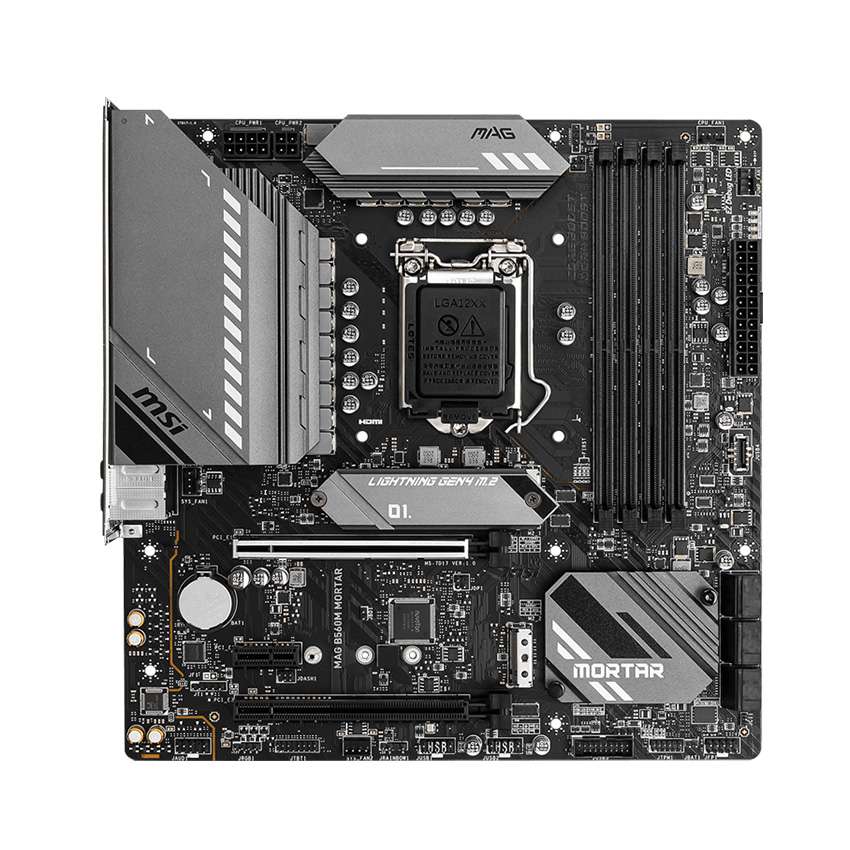

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Tuning Controller Connector
1x TBT connector (Supports RTD3)

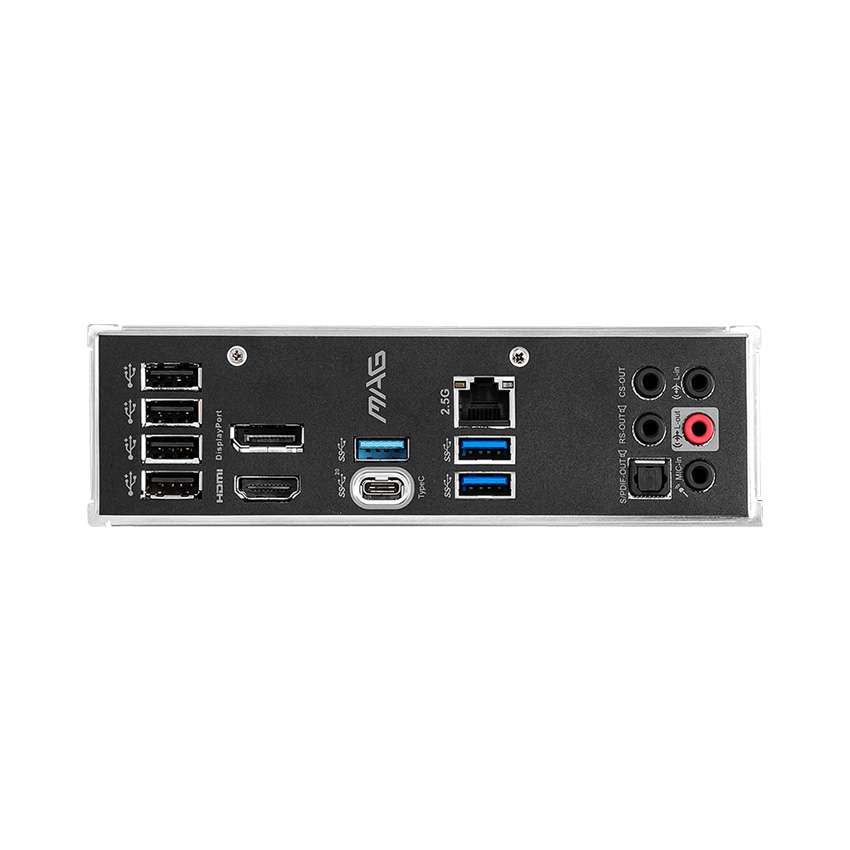

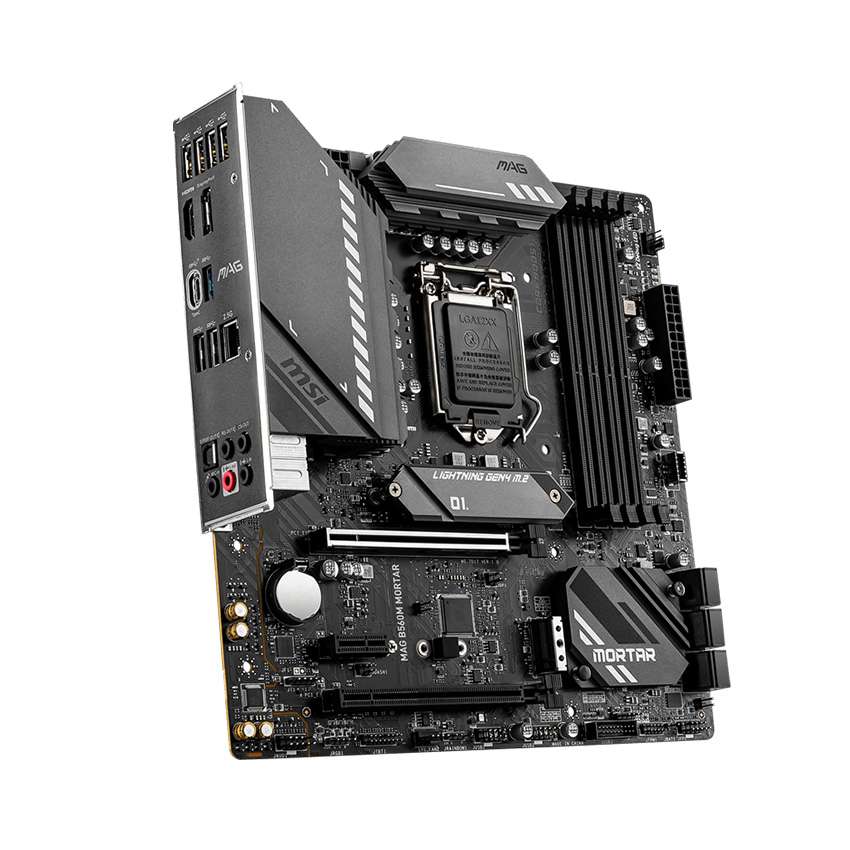

Cổng kết nối (Back Panel)

1 x HDMI
1 x LAN port
1 x Audio connector
4 x USB 2.0
1 x wifi/bluetooth
1 x DP
3 x USB 3.2 Gen 1 5Gbps Type A
1 x USB 3.2 Gen 2x2 20Gbps Type c
1 x Optical S/PDIF OUT

LAN / Wireless

1x Realtek® RTL8125B 2.5Gbps LAN controller

Kích cỡ

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
