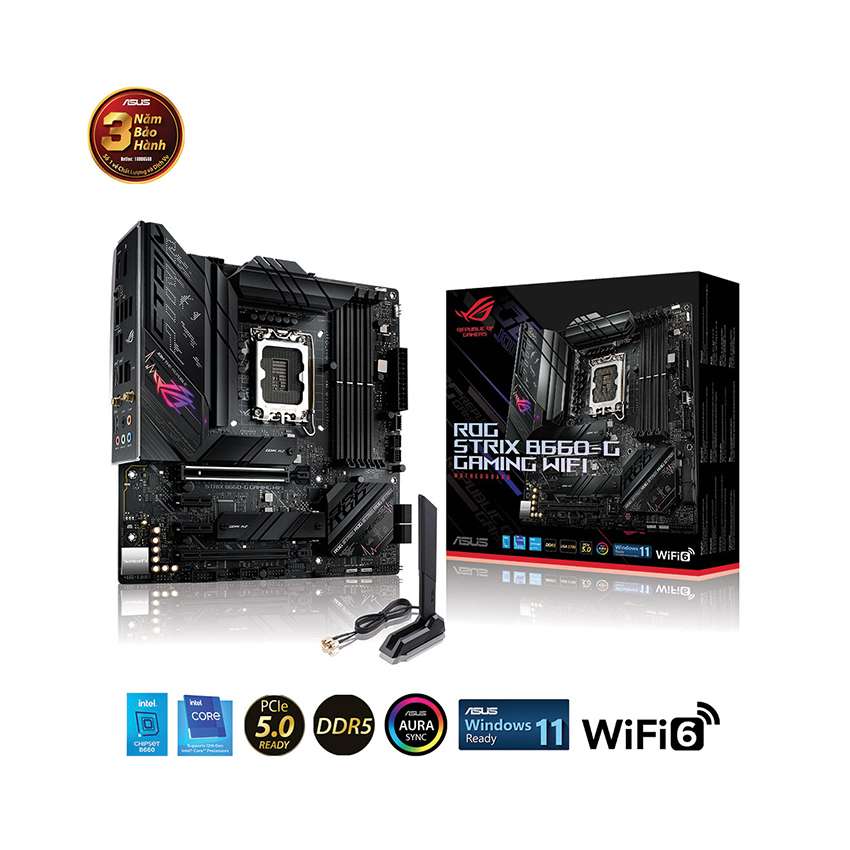

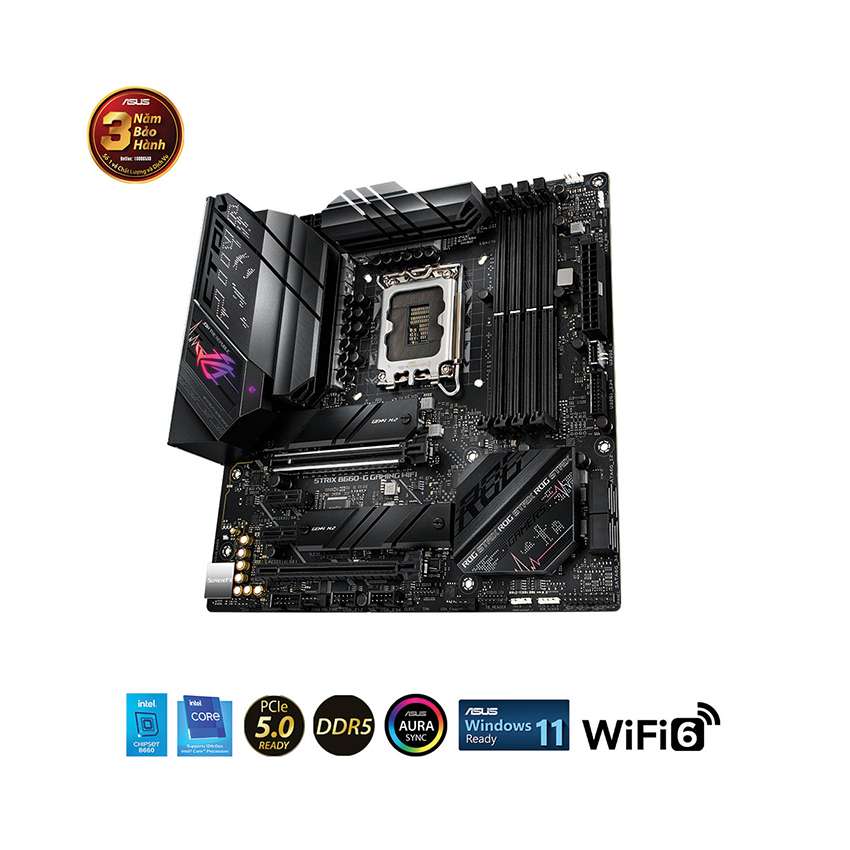

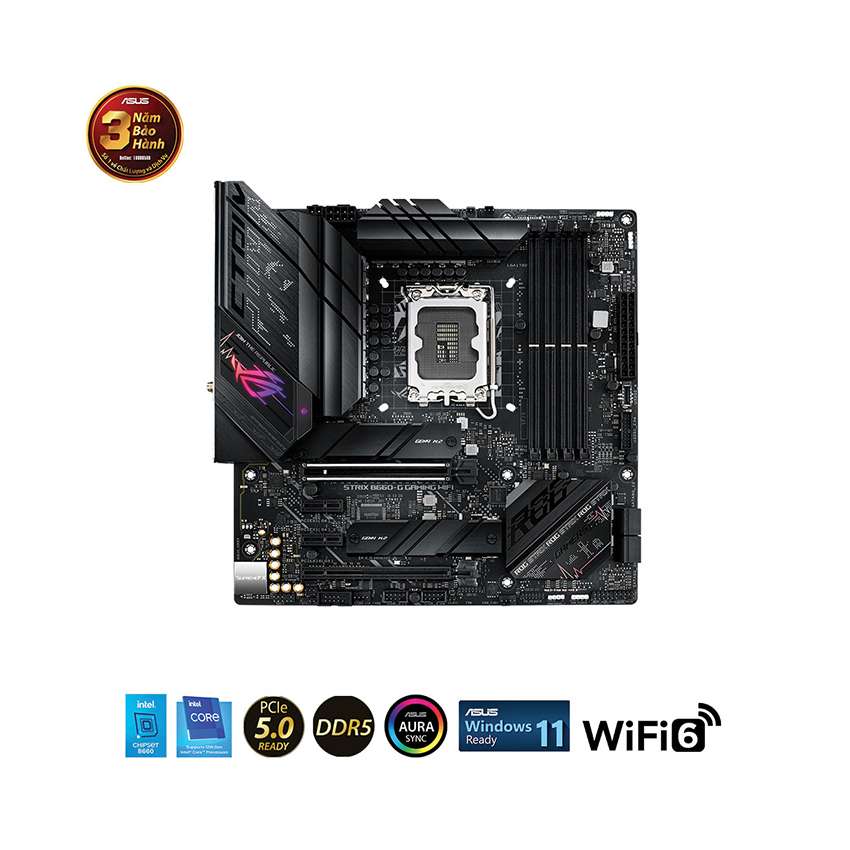

Mainboard Asus ROG STRIX B660-G GAMING WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

ROG STRIX B660-G GAMING WIFI DDR5

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory*

Khe cắm mở rộng

Intel® 12th Gen Processors

1 x PCIe 5.0 x16 slot(s)

Intel® B660 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2x PCIe 4.0 x1 slots

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

2 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

LAN / Wireless

LAN: 1 x Intel® 2.5Gb Ethernet

"Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2"

Kích cỡ

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
